What Is the Contour Interval of the Map Exercise 29

To avoid clutter not every contour is labeled. A portion of a topographic map including the contour interval label.

Exercise 29 Part 1 Jpg Vame Section Exercise 29 Problems Parti The Following Questions Are Based On The Lower Right Southeast Corner Of The Course Hero

Read through Appendix C in your text for additional background.

. The North end of the compass needle ALWAYS points toward what direction. The size of the contour interval depends on the amount of elevation change across a map. 700 800 X X 700.

29 MSL 102 Lesson 02. The numbers 25 and 36 are related to the Public Land Survey System. The previous diagram shows how a contour line is labelled.

Construct a rough draft on a separate sheet of paper first. What Is The Contour Interval Of The Map. What is the contour interval of the map.

These lines are evenly spaced apart. The contour interval is 20. A standard contour interval is always used.

From the contour map a profile can be drawn of the terrain. The elevation above sea level of some contours on a map must be shown. Mplete EXERCISE 29 PROBLEMS-PART I The Following Questions Are Based On The Lower Right southeast Corner Of The Greasewood Spring Arizona Quadrangle Maps T-18 And T-19 Shown In Color In The Back Of The Lab Manual.

A contour line on a map connects points that are at the same distance above or below sea level or. Map and Compass Activities Directions. This means that there is an equal height interval between contour lines.

If the contour interval is not printed on the map it can be calculated which is discussed. Using the bar scale provided in the map margin measure the length of the southern boundary of the topographic map from El Portal to Merced Peak. Map of the land surface in three dimensions 3-D viewed from directly above.

Exercise 29 1. Reference point from which elevatios are measured. This topographic quadrangle map was compiled from aerial photographs taken in.

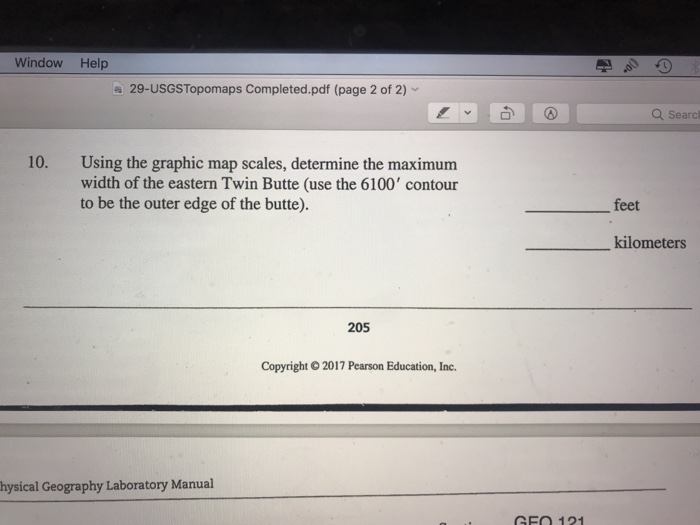

What is the elevation of the highest contour line at the top of the eastern Twin Butte. This interval is the difference in height or elevation between one contour line and the one next to it. _____ EXERCISE 29 PROBLEMS PART I The following questions are based on the lower right southeast corner of the Greasewood Spring Arizona quadrangle Maps T-18 and T-19 shown in color in the back of the Lab Manual.

Declination for this map is 16 east. The contour interval can be easily calculated by finding the elevation difference. The given point 537 therefore must lie between the 520 and 540 contours contours a and b.

The contour interval is the difference in elevation between adjacent contour lines. Magnetic North lies in what direction relative to geographic North if the magnetic declination is 14 degrees East. A graphic scale for measuring horizontal distances is shown below the map.

Study the spot heights on Map 1. Start studying ex2829 and 30. North is to the top of the map.

Map Reading II Revision Date. The peak is normally considered to be located at half the interval distance. Example 2 - Draw a profile showing the elevations of the contours.

Contour Lines Name Section EXERCISE 28 PROBLEMS The questions in this exercise are based on this contour line map with elevations shown in feet. What do the dashed blue. Learn vocabulary terms and more with flashcards games and other study tools.

Your contour map with north arrow scale bar written scale contour interval and the three benchmarks Put your north arrow scale and contour interval below your drawn map just like you see on most published topographic maps. The difference in elevation between 2 contour lines. On topographic maps each contour line connects points at the same elevation.

Look carefully at the sample map. The intervals are increasing therefore the contours indicate a hill. Pplementary contour lines do not CONTOUR INTERVALS Printed below the bar scales in the middle of each map is the contour interval.

What is the difference in elevation between index contours. Be sure you set your compass before you begin. Maps changing topographic contour intervals.

The next two maps will illustrate some additional interpretations of contour lines. Give the correct answer or letter for each question. Largest scale map printed.

The contour interval is 5 feet and the highest point elevation 760 feet is located near the center of the map. The numbers 25 and 36 are related to the Public Land Survey System. 1 inch 2000 feet.

What is the contour interval of the map. Geolab 9 - Exercise Using a blank sheet of paper trace Map 1. How many feet are there in an inch on a map if the scale is 112000.

You should review a brief power point presentation about topographic maps A Topographic map shows the variations in elevation of the area represented on the map with contour lines. What is the fractional scale of the topographic map. The elevation for each contour line is sometimes marked on the line.

The contour interval of the map is 25 feet and the index contours are every 100 feet. Contour Interval bottom center of the map Contour interval is the difference in elevation between two adjacent contour lines. Possible contours include 500 520 540 560 580 600 620 etc.

Different maps use different intervals depending on the topography. What is the Bruton compass used to measure. 30 November 2012 Determine Hilltop Elevation To determine the elevation to a hilltop add one-half the contour interval to the elevation of the last contour line.

You can estimate or determine the elevation of a point on a map by following the steps indicated below. For example if your map uses a 10-foot contour interval you will see contour lines for every 10 feet 3 meters of elevation lines at 0 10 20 30 40 and so on. The contour interval of the map is 25 feet and the index contours are every 100 feet.

We call this spacing the contour interval. Because the stream flows south contour a which lies downstream of contour b must be the lower of the two. On USGS maps contour intervals are usually 1 5 10 20 40 and 80 feet.

In Figure 2-5 the contour interval is 40 feet. The next two maps will illustrate some additional interpretations of contour lines. Streams are shown with dashed lines.

Widely separated contour lines indicate a gentle slope. 20 Feet 100 2. In flat or gently sloping areas the contour interval is a low number like 10 or 20 feet whereas in very steep areas it is a high number like 100 feet or more.
